Changing a Yubikey 5C NFC PIN

The Security Key is a very powerful cybersecurity device and represents the state-of-the-art in multi-factor authentication (MFA) technology that does not use any passwords. The MFA is supported by the:

  • Possession factor – where the physical possession of the Security Key is essential to the authentication process;
  • Knowledge factor – where know the PIN to the Security Key is also essential to the authentication process.

Since the Security Keys provided with the SB2 use two different NIST-approved, passwordless authentication protocols, there are two containers for the cryptographic keys used with the protocols. Each container is managed by a separate PIN.

However, StrongKey recommends using the SAME PIN to both containers of the Security Key to reduce the burden on users. As long as the Security Key is safely in the possession of the legitimate user, and the legitimate user is NOT sharing the PIN to the Security Key with anyone, the user will be complying with one of the strictest security policies recommended for access control.

This document outlines the process for changing the two required PINs – one for the PIV certificate and the other for the FIDO credential.

AP1 Prerequisites

  • Windows 11
  • Yubikey 5C NFC
  • Yubico Authenticator Application
  • Internet connection
  • USB-C port or USB-C-to-USB-A adapter

AP2 Open the Yubico Authenticator Application

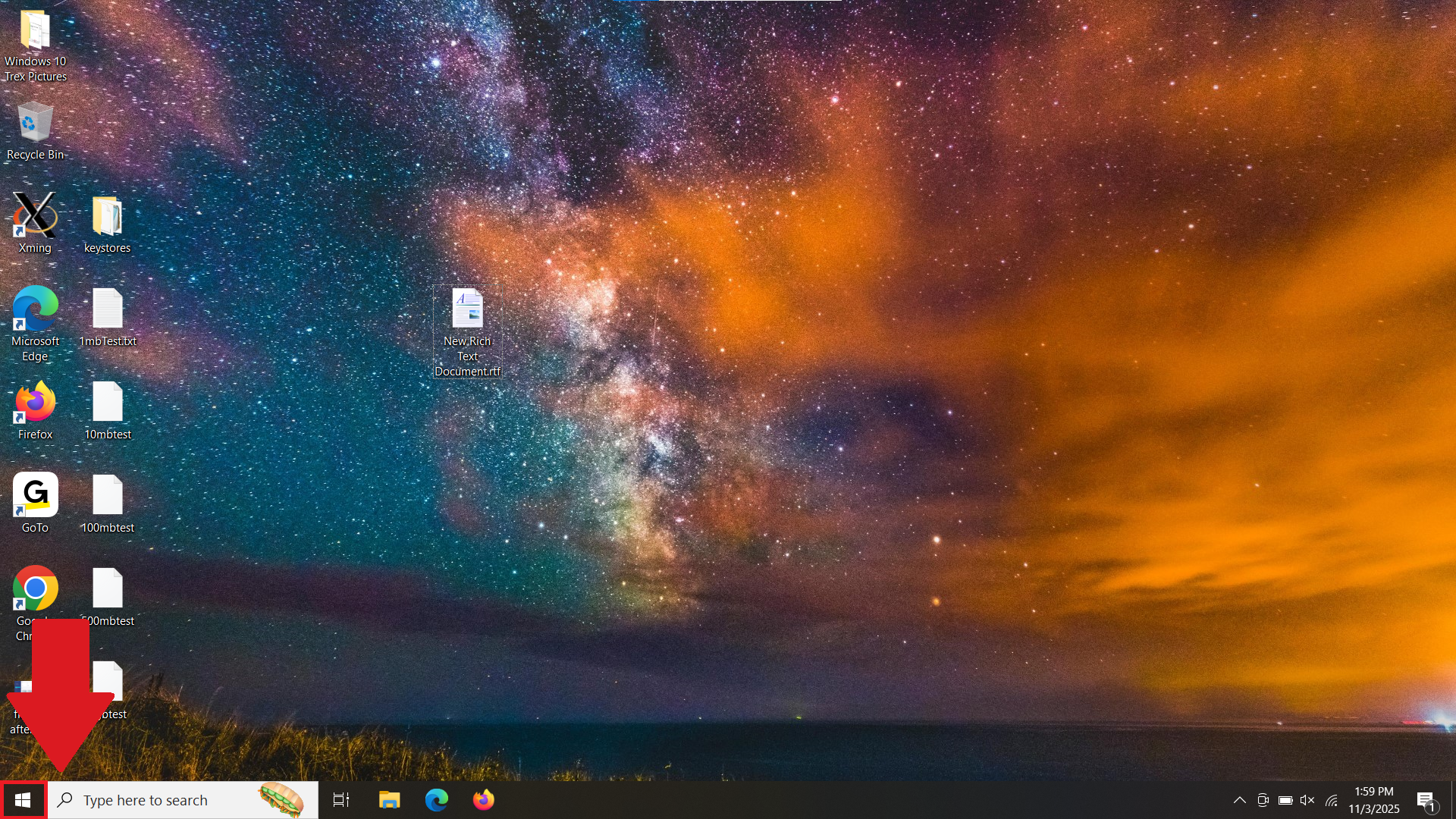

To begin, access the Yubico Authenticator application by selecting the Windows start icon from the Windows taskbar.

Yubikey Change PIN

AP3 Select Yubico Authenticator

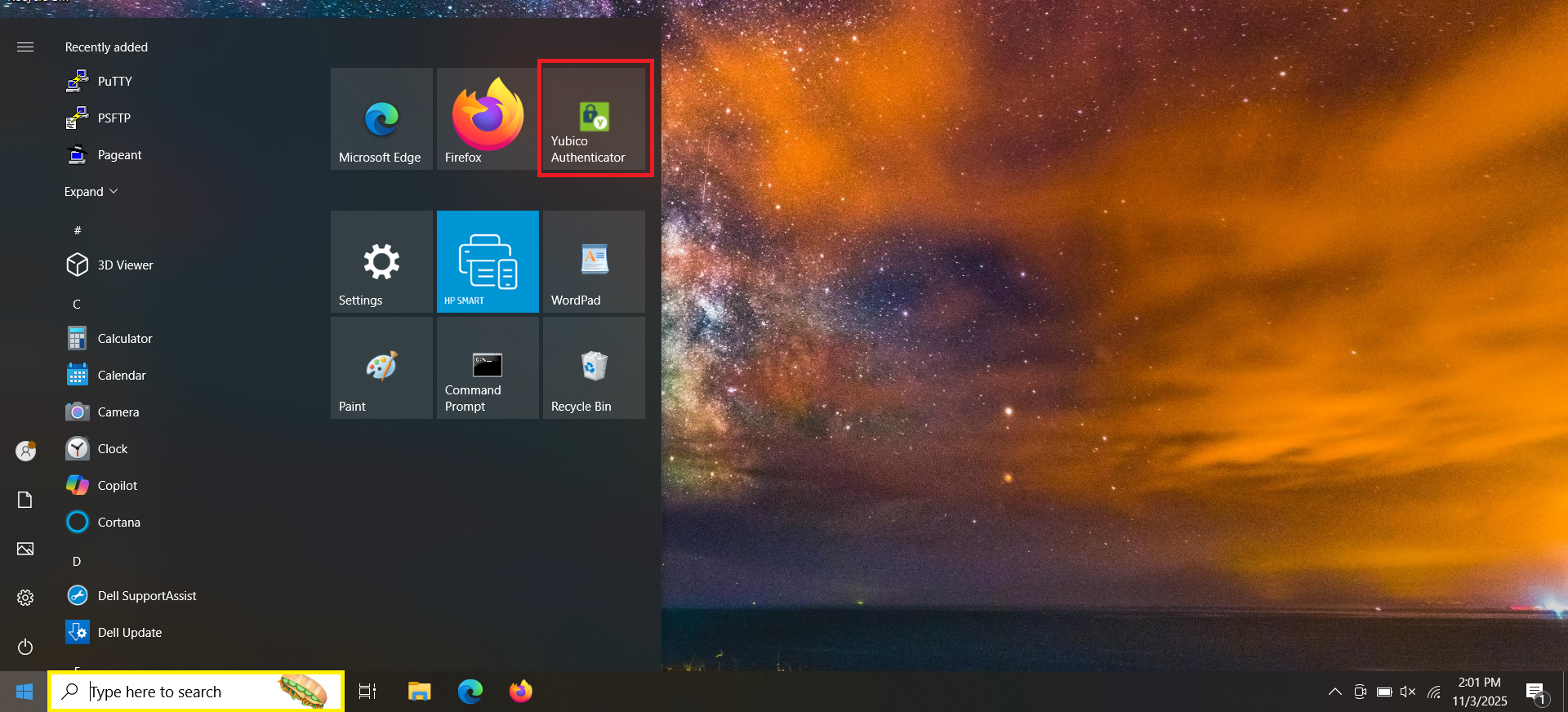

From the menu, select the Yubico Authenticator application. If it does not appear, type ‘Yubico Authenticator’ in the search bar or scroll down in the recently added tab.

Yubikey Change PIN

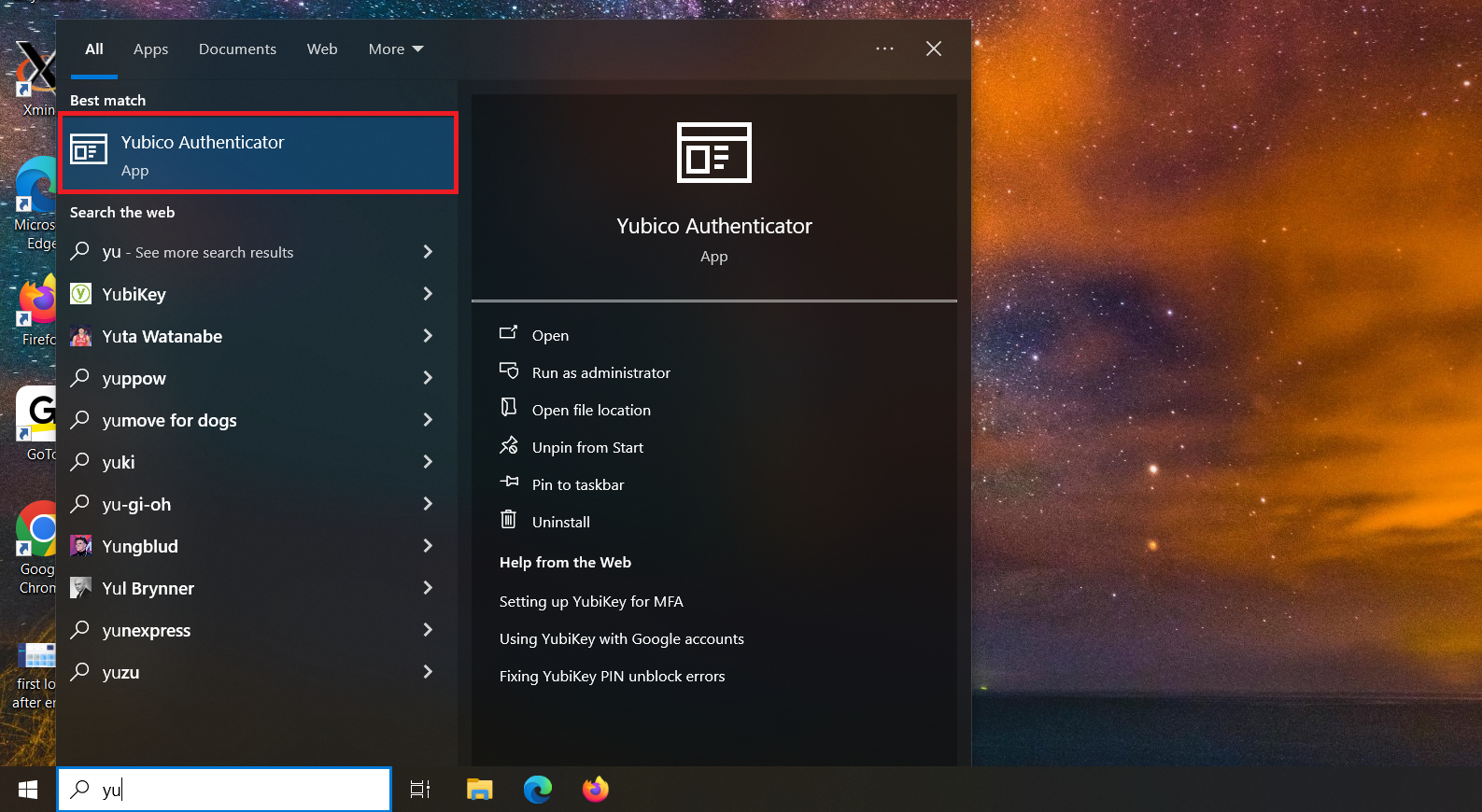

After typing a few letters of Yubico Authenticator, the application will display. Hit Enter on the keyboard or click on the application name to access.

Yubikey Change PIN

AP5 The Yubico Authenticator Application

Upon opening, the application displays the screen shown below and indicates “No Yubikey Present.”

Yubikey Change PIN

AP6 Insert the Yubikey 5C NFC

Plug the Security Key into the USB-C port.

AP7 Identifying the USB-C Port

Locate the USB-C port—typically found along the edge of the computer, it features a compact design with smooth, rounded corners that set it apart from traditional USB-A ports. The image below shows both a USB-C port and its matching male connector.

Yubikey Change PIN

AP8 No USB-C Port? No Problem

With the provided USB-A to USB-C adapter, simply plug the USB-A end into the computer and insert the Security Key into the USB-C port.

The provided USB adapter pictured below.

Yubikey Change PIN

AP9 Changing the Digital Certificate PIN

From the home screen, navigate to the left and select the Certificates option from the menu.

Yubikey Change PIN

AP10 Change PIN Option

Select the Change PIN option from the Manage menu on the right.

Yubikey Change PIN

AP11 Enter PIN Information

  • In the top field, enter the default PIN: 123456.
  • Enter the new PIN in the middle field. The PIN must contain 6 to 8 characters.
  • Re-enter the new PIN in the final field to confirm.

Yubikey Change PIN

AP12 Save New PIN

Click Save. The application returns to the previous screen. If the process is successful, a “PIN changed” notification briefly appears at the bottom of the screen.

Yubikey Change PIN

AP13 Changing the FIDO Credentials PIN

To update the second PIN, click on the Passkeys menu option to the left.

Note

StrongKey recommends using the same PIN for the Security Key.

Yubikey Change PIN

AP14 Passkeys Menu

In the Passkeys menu, select Request Access.

Yubikey Change PIN

AP15 Yubico Authenticator Application Permission

The Yubico Authenticator application will ask Windows for permission to implement changes on the computer. Click yes.

AP16 Change PIN Option

Select the Change PIN option located on the right of the screen.

Yubikey Change PIN

AP17 Enter PIN Information

  • In the text field marked Current PIN type in your current PIN. If you have not changed it, it is 123456 by default.
  • In the text field marked New PIN enter a new PIN of your choice. It must be a minimum of 6, and up to 63 characters.
  • In the text field marked Confirm PIN enter the same PIN you selected.

Yubikey Change PIN

AP18 Success!

The display will return to the Passkeys menu, and a notification stating "PIN Reset" will briefly appear at the bottom of the screen.
